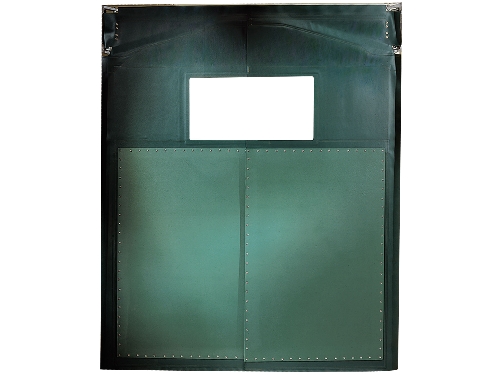

Flexible doors are a cost-effective way to provide a swing door in openings for heavy traffic applications. The top mounted gravity-operated hinge system allows the door to open fully and close automatically, allowing easy access and conserving energy. These doors are easy to install and virtually maintenance free.

Downloads


Colour

Forest_Green Forest Green


Door Panel

Constructed of 45 oz. USDA accepted, abrasion-resistant, vinyl coated nylon material. Each door panel includes one row of flexible horizontal stays. Approximate weight is 2-1/2 PSF. Available in green only.

Wipers

For a positive seal, wipers are provided at the top, bottom and on the jamb sides.

Leading Edge

3” overlap at the center on bi-parting doors provides a noise and temperature barrier.

Pocket Weights

Provided at the bottom of each panel.

Windows

Various window configurations are available, type 30” x 14” is standard.

Top Mounted Gravity Hinge

Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.

AirGard 100E

The same construction as the Model 100, but includes 48” high, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.

AirGard 100CSE

The same construction as the Model 100, but includes full height, .125 Kydex or polyolefin impact plates on both sides of the panel. The door and Kydex impact plates are available in green only.


  • Supermarket
  • Retail
  • Industrial
  • Food Processing
  • Institutional
  • Cold Storage
  • Warehouse Distribution

  • Windows
  • Impact Plate
