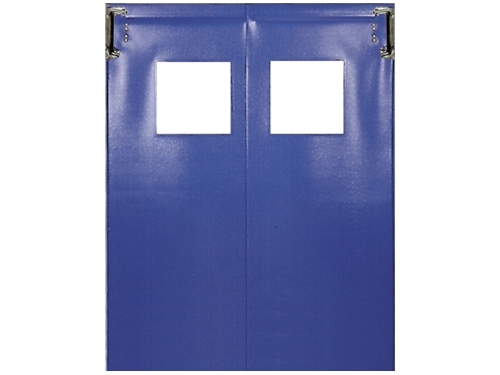

Flexible doors are a cost-effective way to provide a swing door on openings for heavy traffic applications. These traditional doors provide a maximum opening clearance for wide loads. Replacement for existing doors is fast and easy due to the simple construction of our top-mounted gravity hinging system.

Downloads


Colours

Black Black

Beige Beige

Chocolate_Brown Chocolate Brown

Forest_Green Forest Green

Medium_Brown Medium Brown

Metallic_Gray Metallic Grey

Navy Navy

Red Red

Royal_Blue Royal Blue


Door Panel

Constructed of two layers of .120” PVC, laminated together to a thickness of .240″ and embossed with a textured finish. Approximate weight is 3 PSF.

Leading Edge

Standard overlap at center on biparting models is 1-1/2” and provides a noise and weather barrier.

Window

Standard configuration is 15” x 14” clear vinyl window centered in each panel 60” from the floor (Cal-OSHA available). Other window configurations are available.

Top Mounted Gravity Hinge

Standard with the Chase top-mounted gravity hinging system that opens instantly upon contact, then closes automatically by gravity.

Bracket Arm Adjustment Hinge

Optional bracket arm adjustment feature compensates for jambs that are not plumb.

Impact Plates

Optional PVC impact plates are available in the following colors: forest green, navy, metallic gray, medium brown, red, royal blue, chocolate brown and black.


  • Supermarket
  • Retail
  • Food Processing
  • Institutional
  • Cold Storage
  • Warehouse Distribution

  • Windows
  • Impact Plate
