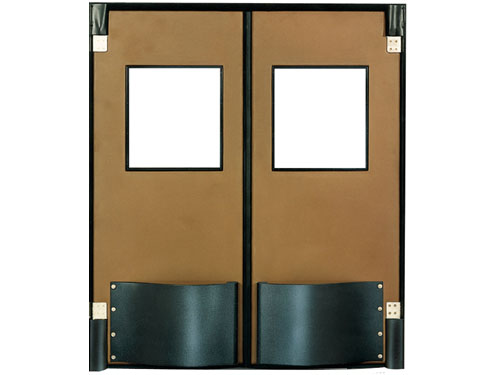

This lightweight patented door is rotationally molded from cross-linked polyethylene and is known in the industry for its ruggedness, ease of maintenance and long service life. Standard tests for impact resistance indicates that cross-linked polyethylene is five times more puncture resistant and three times more flexible than ABS material.

Downloads


Colours

Black Black

Beige Beige

Chocolate_Brown Chocolate Brown

Medium_Brown Medium Brown

Metallic_Gray Metallic Grey

Cloud_Gray Cloud Grey

Navy Navy

Red Red

Royal_Blue Royal Blue

Cadet_Blue Cadet Blue

Burgundy Burgundy

Forest_Green Forest Green

Jade Jade

White White


Door Panel

Lightweight, weighing only 2.5 pounds per square foot, opens with ease, operates smoothly and allows for safe passage of personnel and damage free equipment. The overall panel thickness is 1-7/8” and the skin thickness is 1/8” thick.

Insulated Core

The foamed-in-place Non-CFC urethane core (permanently bonded to the outer surface) does not break down when impacted, provides noise control and excellent insulation with an R factor of 10.83.

Internal Reinforcement

The leading and back edge of door are internally reinforced with tubular steel to strengthen the door panel.

Upper Hinge

Heavy-duty v-cam hinging system operates smoothly and is virtually maintenance free with its permanently lubricated needle bearing roller assembly. Optional stainless steel hinge is available.

Bottom Hinge

For additional strength and durability the hinge is designed with pillow block constructed of zinc plated ductile iron (stainless steel is optional) with a UHMW sleeve and solid cast aluminum lower hinge adapter. Plus the lower hinge adapter has a provision for mounting an optinal spring assist.

Window

1/8” thick polycarbonate window with black frame is recessed a minimum of 1/8” from the face of the panel to protect the window’s surface from abrasion caused by passing loads.


  • Supermarket
  • Retail
  • Industrial
  • Pharmaceutical
  • Food Processing
  • Institutional
  • Chemical
  • Cleanrooms
  • Cold Storage
  • Water / Wastewater
  • Warehouse Distribution

  • Windows
  • Bumpers
  • Hinge Guard
  • Impact Plate
  • Cart Guards/Rub Rails
  • Security Lock
  • Double PaneWindows
  • Kick Plate
  • Spring Assist
  • Push Plate and Pull Handle
  • Hold Open Device
