For inside and outside environments

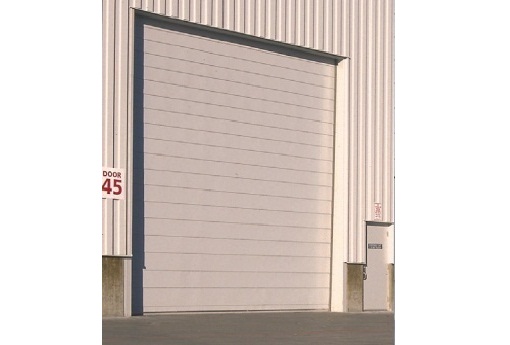

Class B fire rated steel telescoping security doors for interior and exterior environments.

  • Standard dimension up to 30′ W x 29′ H
  • Opening Speed: up to 10″ Per Second
  • Wind Resistance up to 50 psi – Florida huricane zone approved

See the Armor Door video »


blanc 9010 White

bleu 5002 Blue

gris 7035 Grey

jaune 1003 Yellow

noir 9005 Black

orange 2004 Orange

rouge 3000 Red

vert 6005 Green

Standard Dimensions

30′ W x 29′ H

Standard Opertaing Speed

12 inch/sec up to 19 inch/sec

Operating Type

Gear driven, direct drive operator

Side Guide

Made of 10-gauge primed steel.

Inner Side Guide

Made of 10-gauge


In steel, diameter 5″ shafts in steel.

Door Curtain

Curtain panels shall be G-90-galvanized steel with baked-on acrylic prime coat and baked on acrylic finish in 6 standard colors. Additional colors available upon request.


Withbrake, with 4 poles, controlled by a variable speed drive. Power: 1 HP, 2HP, 3HP and 5HP 3phase. Protection degree NEMA 4.


Eurodrive In Line Operator


An infrared photocell installed inside the side guide and detecting the presence of a pedestrian or a vehicle. Upon activation, it opens the door immediately and keeps it open as long as the presence is detected. Height of the photocell: 12” from the floor. (Optional: up to maximum 24” fromthe floor). A bottom edge detector opens the door when it hits an obstacle during the closing cycle. This detector is positioned at the bottom part of the nest.

Power Supply

Standard: single phase 208-230 VAC, three phase 208-230 VAC, three phase 460 VAC. Optional: three phase 575 VAC Frequency: 50-60 Hz. Circuit breakers to be provided by the customer: 6A for a motor of 0.74 HP; 10A for 1 HP and 16A for 2 HP.

Space Requirements

Call for headroom clearance

  • Curtain made of G-90-galvanized steel with baked-on acrylic finished coat
  • Sound transmission class rating 29
  • Double wall construction provides an excellent U-Value of 0.51
  • Infrared photocell in side guides
  • Soft bottom edge
  • Wireless electric bottom edge detector
  • Maximum standard dimension up to 28′ x 29′
  • High wind resistance
  • Operating speeds from 12″ to 18″ per second
  • Gear driven, direct drive operation
  • Recommended for high traffic areas

  • Manufacturing
  • Production areas
  • Transportation
  • Distribution
  • Automotive
  • Whenever wind protection is required
