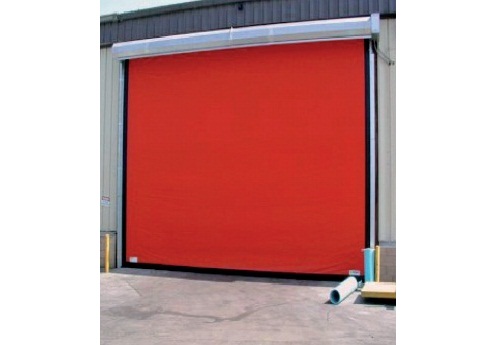

For inside and outside environments

  • Standard dimension up to 39′ W X 18′ H
  • Opening Speed: Up to 96″ Per Second
  • Wind Resistance: 60 MPH for an 18’ wide door


blanc 9010 White

bleu 5002 Blue

gris 7035 Grey

jaune 1003 Yellow

noir 9005 Black

orange 2004 Orange

rouge 3000 Red

vert 6005 Green

Standard Dimensions

39′ W x 18′ H

Standard Operating Speed

31.2 in/s

Operating Type

Gear driven, push-pull movement

Side Guide

Made of structural channels of 3 15/16″ x 2″ x 1/8″ in galvanized steel.

Inner Side Guide

Polyethylene (PE-UHMW 1000); outer section 7/8” x 1 9/16”, on springs. Galvanized side covers included.


In steel, diameter 5 1/2″ x 1/8″, shafts in steel.

Door Curtain

Reinforced PVC (27 oz/sq.yd). Available in different colors and provided with side sealing zippers; soft bottom edge design.


Without brake, with 4 poles, controlled by a variable speed drive. Power : 2 HP for a door surface up to 61 sq.yds; 3 HP (larger surface). Protection degree NEMA 4.


Size 63 for a motor of 2 HP and gear reduction ratio 1/15; size 90 for 3 HP.


An infrared photocell installed inside the side guide and detecting the presence of a pedestrian or a vehicle. Upon activation, it opens the door immediately and keeps it open as long as the presence is detected. Height of the photocell: 12” from the floor. (Optional: up to maximum 24” from the floor). A bottom edge detector opens the door when it hits an obstacle during the closing cycle. This detector is positioned at the bottom part of the curtain.

Power Supply

Standard: single phase 208-230 VAC, three phase 208-230 VAC, three phase 460 VAC. Optional: three phase 575 VAC Frequency: 50-60 Hz. Circuit breakers to be provided by the customer: 16A for a motor of 2 HP; 25 A for 3 HP..

Space Requirements

All indicated dimensions are net: the additional space necessary for mounting and maintenance has to be taken into account. Reduced dimensions upon request.

  • Curtain made of reinforced PVC vinyl
  • Infrared photocell in side guides
  • Soft bottom edge
  • Pneumatic bottom edge detector
  • Maximum standard dimension up to 39′ x 18′
  • High wind resistance
  • Operating speeds from 48″ to 96″ per second
  • Gear driven, push pull operation
  • Recommended for high traffic areas

  • Manufacturing
  • Production areas
  • Transportation
  • Distribution
  • Automotive
  • Whenever wind protection is required
