10’0” W X 10’0” H openings
Generally designed to suit 10’ wide x 10’ high openings. The series D450 service a large variety of trailer heights. This unit allows full access to the rear of the trailer when loading and unloading. An internal oil tempered spring on the header air bag and counter weight retraction design on the vertical bags allows the top and side air bags to fully retract when not in use. This design prevents damage from incoming trailers since the unit is inflated after the trailer has docked and deflated before

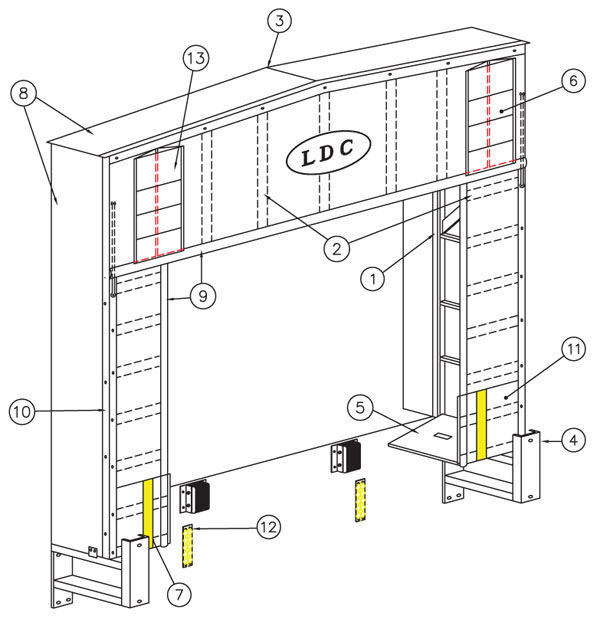

- Pressure treated framing resists rot (optional galvanized frame available)
- Raked head frame diverts water to sides
- Protective steel guards
- Replaceable foam bottom pads seal gap between truck and building wall
- Yellow guide stripe ensures accurate placement of trucks
- Translucent polyethylene sheeting with UV inhibitors allows light into loading dock area
- Galvanized trim angle will not rust
- “Stop” logo on side air bag to prevent trailer from entering dock area if bag is accidentally left inflated
- Air bag storage curtains prevent damage to air bag when retracted by any misaligned trailer
- Optional “Reflective Guides” ensure accurate truck placement and help to protect frame from misaligned trailers
Customize Your Dock to Suit Your Specific Needs
Conventional foam pads protect against weather, but restricts access to the trailer opening.
LDC’s D450 inflatable shelter provides full access to the rear of the trailer.
You can customize your dock seal with the ideal fabric for your application from a wide range of colours and fabrics available.
- 14 oz Hi-Tear Vinyl
- 22 oz Hi-Tear Vinyl
- 32 oz Hi-Tear Vinyl
- 40 oz Hi-Tear Vinyl
- Hi-Performance Artic Seal
- 16 oz Hi-Tear Hypalon
- 40 oz Hi-Performance Hypalon
