30,000 to 45,000 lb (13,636 to 20,455 kg) Rated Capacities

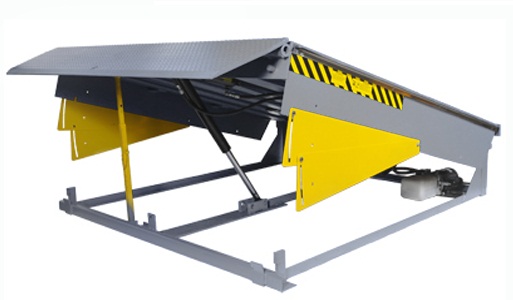

Superior quality, ease of operation, and advanced safety features make the Portes Olympique U-Series hydraulic dock leveler an ideal choice for increased productivity at the loading dock.
The U-Series hydraulic dock leveler comes standard with a single push button control for sequenced deck and lip operation. Operating range is up to 12” (305mm) above and 12” (305mm) below the dock leveler. The U-Series comes complete with a 1HP, Totally Enclosed Non-Ventilated (TENV) power pack system.

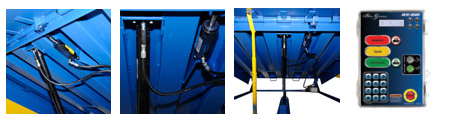

Highlights
- Minimum of 6 U-beams channel deck supports
- deck flex up to 4” (101mm) when under load
- Yieldable lip safely collapses if struck while extended
- A hydraulic velocity fuse that limits the loaded ramp’s free fall to within 3“ (76mm)
- Full operating range metal toe guards painted safety yellow as specified by ANSI Z535.1
- Stationary side toe guards with high visibility OSHA safety striping
- A maintenance strut that supports the deck and lip and facilitates under- deck maintenance and inspection
Options
- Portes Olympique Assured Motion Float
- Vehicle Restraint
- 18” (457mm) and 20” (508mm) long lips
- Brush and rubber weather seals
- Full operating range metal toe guards
- Pour-in pan to facilitate new construction
- New construction pit kit
- Dock lip barrier
Safety Features
- A hydraulic velocity fuse that limits the loaded ramp’s free fall to within 3″(76mm)
- Full operating range metal toe guards painted safety yellow as specified by ANSI Z535.1
- Stationary side toe guards with high visibility OSHA safety striping
- A maintenance strut that supports the deck and lip facilitates under-deck maintenance and inspection
Added options
StrongArm™ Dock Lip Barrier 30,000 to 80,000 lb (13,636 to 36,364 kg) Rated Capacities
The StrongArm™ Dock Lip Barrier is your line of defense to prevent accidental forklift roll-off when the overhead door is open and no trailer is stationed at the dock. Available on both the A-series and U-series dock platforms.
When in the stored position, the StrongArm™ Dock Lip Barrier extends 5” above the cross traffic position providing an active, full dock width solid steel barrier.
When the dock is being used or the lip is in the extended working position, the lip remains flush or level with the deck plate providing smooth, unobstructed transition for materials loading or unloading. Also included are the means of lowering the lip below level dock operations.
The StrongArm™ Dock Lip Barrier is designed to withstand up to 15,000lb load impact at 5mph. The solid high tensile one piece steel lip plus 1” diameter lip hinge pin provides additional structural integrity for continued product performance and longevity.
Available on all A-Series hydraulic dock leveler models.
StrongArm Dock Lip Barrier Highlights
- 5” high dock lip barrier
- Heavy-duty solid steel deck construction and 4” maintained deck tilt
- Fully hydraulic operation
